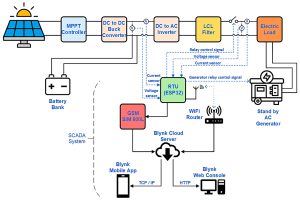

Modern Control Systems
Modern Control Systems: Integration of PLC, SCADA, HMI, IoT, and Field Devices
Introduction
Modern industries rely heavily on automation and control systems to maintain efficiency, reliability, and safety. Unlike traditional manual control methods, today’s advanced technologies integrate Programmable Logic Controllers (PLC), Supervisory Control and Data Acquisition (SCADA) systems, Human-Machine Interfaces (HMI), Internet of Things (IoT) solutions, and a wide range of field devices. Together, these elements form the backbone of industrial automation, enabling real-time monitoring, intelligent decision-making, and remote accessibility.
This article explores each component in detail, highlighting their roles, interconnections, and contributions to modern automation systems.
1. Evolution of Control Systems
1.1 Early Manual Systems
In the past, control was manual, relying on operators to adjust valves, monitor gauges, and ensure machinery was functioning correctly. This process was labor-intensive and prone to errors.
1.2 Introduction of Relay Logic
Before PLCs, relay-based control panels were widely used. While effective, they were bulky, complex, and difficult to troubleshoot or modify.
1.3 Rise of PLC and Automation
The introduction of the PLC in the late 1960s revolutionized automation. It replaced relay logic with programmable instructions, allowing flexibility, scalability, and faster troubleshooting.
1.4 Modern Era: Connected Systems
Today’s systems integrate smart devices, IoT sensors, and cloud platforms, enabling predictive maintenance, analytics, and global accessibility.
2. Programmable Logic Controllers (PLC)
2.1 What is a PLC?
A PLC is a ruggedized digital computer designed for industrial automation. It continuously monitors inputs, processes logic instructions, and controls outputs to operate machinery or processes.
2.2 Features of PLCs
-
- High reliability in harsh industrial environments
-
- Modular architecture (I/O modules, CPU, power supply)
-
- Real-time response and deterministic execution
-
- Easy programming using Ladder Logic, Function Block Diagram, Structured Text
2.3 Applications of PLCs
-
- Assembly lines and conveyor systems
-
- Process control in chemical, oil & gas, and pharmaceuticals
-
- Robotics and motion control
-
- Packaging and material handling
2.4 Advantages
-
- Flexibility in reprogramming
-
- Compact and scalable
-
- Easy integration with other systems like SCADA and HMI
3. Supervisory Control and Data Acquisition (SCADA)
3.1 What is SCADA?
SCADA is a centralized system used to monitor and control industrial processes. It collects data from remote field devices, displays it to operators, and enables control through supervisory commands.
3.2 Core Components of SCADA
-
- Master Terminal Unit (MTU): Central server where data is processed.
-
- Remote Terminal Units (RTUs): Collect data from field sensors and send it to MTU.
-
- Communication Network: Connects RTUs and MTU.
-
- HMI Software: Displays data to operators.
3.3 Functions of SCADA
-
- Real-time data acquisition
-
- Alarm management and notifications
-
- Historical data storage and trend analysis
-
- Remote control of field devices
3.4 Applications
-
- Power generation and transmission monitoring
-
- Water treatment and distribution systems
-
- Oil & gas pipelines
-
- Manufacturing industries
3.5 Advantages
-
- Centralized monitoring
-
- Reduced downtime via quick response
-
- Remote access for widespread operations
4. Human-Machine Interface (HMI)
4.1 Definition
An HMI is a user interface that allows operators to interact with machines, processes, or control systems. It provides visual representations of data, controls, and alarms.
4.2 Features
-
- Graphical dashboards for real-time monitoring
-
- Touchscreens and control panels
-
- Alarm indication and acknowledgment
-
- Data logging and reporting
4.3 Importance in Modern Systems
Without HMIs, operators would find it difficult to interpret raw data. HMIs simplify complex processes into intuitive visuals, improving decision-making.
4.4 Applications
-
- Production line monitoring
-
- Energy management
-
- Facility automation systems
-
- Quality control visualization
5. Internet of Things (IoT) in Industrial Automation
5.1 Concept of IIoT
The Industrial Internet of Things (IIoT) integrates smart sensors, actuators, and network connectivity to create a highly connected environment where machines communicate with each other and with cloud platforms.
5.2 Key Features
-
- Real-time remote monitoring
-
- Predictive maintenance through analytics
-
- Cloud-based data storage and processing
-
- Interoperability across multiple devices
5.3 Benefits of IoT Integration
-
- Increased operational efficiency
-
- Reduced downtime and maintenance cost
-
- Improved safety with predictive alerts
-
- Access to global data for better decision-making
5.4 Use Cases
-
- Smart factories (Industry 4.0)
-
- Energy monitoring in manufacturing plants
-
- Remote monitoring of oil rigs and mining equipment
-
- Asset tracking and logistics automation
6. Field Devices in Control Systems
6.1 Sensors
Sensors are the eyes and ears of modern systems. They measure physical parameters like temperature, pressure, flow, and position.
Types include:
-
- Temperature sensors (RTD, thermocouples)
-
- Pressure transmitters
-
- Flow meters
-
- Proximity and level sensors
6.2 Actuators
Actuators convert electrical signals into physical action. Examples:
-
- Valves (pneumatic/electric)
-
- Motors and drives
-
- Hydraulic cylinders
6.3 Industrial Communication Protocols
Field devices communicate using industrial protocols such as:
-
- Modbus
-
- Profibus
-
- EtherNet/IP
-
- OPC UA
6.4 Role in Modern Systems
Field devices provide accurate, real-time data that is essential for PLCs, SCADA, and IoT systems to function effectively.
7. Integration of PLC, SCADA, HMI, IoT, and Field Devices
7.1 Hierarchical Structure
-
- Field Devices: Collect real-world data.
-
- PLCs: Process input data and control outputs.
-
- HMIs: Provide operator interface for control and monitoring.
-
- SCADA: Supervisory system for centralized data collection and control.
-
- IoT Layer: Expands accessibility through cloud and analytics.
7.2 Data Flow Example
-
- A sensor measures temperature.
-
- The signal goes to the PLC.
-
- PLC processes and sends data to HMI for local operator display.
-
- The same data is transmitted to SCADA for central monitoring.
-
- IoT gateway sends data to the cloud for predictive maintenance analysis.
7.3 Benefits of Integration
-
- Seamless operation and monitoring
-
- Reduced downtime with predictive analytics
-
- Global visibility and remote access
-
- Enhanced productivity and cost reduction
8. Challenges in Modern Control Systems
8.1 Cybersecurity
As connectivity increases, systems become vulnerable to cyber-attacks. Strong firewalls, encryption, and network segmentation are necessary.
8.2 Interoperability Issues
Different vendors provide PLCs, SCADA software, and IoT platforms, which may not always integrate seamlessly.
8.3 Cost and Implementation
High upfront investment and skilled workforce are required for modern control system deployment.
8.4 Data Overload
IoT generates massive amounts of data. Filtering and processing relevant information is crucial.
9. Future Trends
9.1 Artificial Intelligence (AI) in Control Systems
AI-driven analytics can optimize operations, detect anomalies, and automate decision-making.
9.2 Digital Twins
A digital twin is a virtual replica of physical assets, allowing simulation, optimization, and predictive analysis.
9.3 Edge Computing
Edge computing reduces latency by processing data closer to the source rather than relying solely on the cloud.
9.4 5G in Industrial Automation
5G enables ultra-reliable, low-latency communication for real-time industrial applications.
Conclusion
Modern control systems represent the fusion of traditional automation technologies with digital innovations. PLCs remain the foundation for reliable process control, SCADA enables centralized monitoring, HMIs provide intuitive operator interfaces, IoT ensures global connectivity, and field devices serve as the vital input-output components.
When integrated effectively, these technologies offer industries improved efficiency, safety, and scalability. Despite challenges like cybersecurity and interoperability, the future points toward AI-driven, connected, and intelligent control systems that will redefine industrial automation.
Human-Machine Interfaces (HMIs)-Hardware / Software & Programming
Human-Machine Interfaces (HMIs) are graphical user interfaces that enable people to communicate with machines or other systems. HMIs simplify the control and monitoring of many processes for users by converting intricate…
Rockwell Automation PanelView 800 vs PanelView Plus 7
Allen Bradley Human-Machine Interface (HMI) solutions are pivotal in ensuring efficient operation, monitoring, and control of machinery and processes. Rockwell Automation’s PanelView 800 and PanelView Plus 7 stand out as robust HMI solutions, tailored to meet diverse industrial needs.
Rockwell Automation PanelViews are operator interfaces that are shown graphically, much like Human-Machine Interfaces (HMIs). They are a mix of software and hardware that let users communicate with a controller. Numerous industrial applications that call for the monitoring, control, and graphical presentation of operational data frequently use these PanelView terminals.
PanelView 800 (HMI)
One of the key features of the PanelView 800 is its compact design, available in 4-inch, 7-inch, and 10-inch display sizes.
Despite its small footprint, the HMI delivers exceptional performance, with a high-resolution colour display that ensures clear visibility of process data and intuitive user interaction.
The touchscreen interface supports multiple gestures, enhancing the ease of use and enabling operators to quickly navigate through different screens and control processes efficiently.
Connectivity is a significant strength of the PanelView 800. It comes equipped with built-in Ethernet and serial communications, supporting a wide range of protocols including EtherNet/IP, Modbus TCP, and DF1. This ensures seamless integration with various controllers, such as Allen-Bradley Micro800, MicroLogix, and CompactLogix, allowing for flexible and scalable system configurations. Additionally, the USB port provides a convenient option for data transfer and firmware updates, further simplifying the maintenance process.
Key Features and Benefits PanelView 800 HMI
- Size Range: The PanelView 800 is available in various sizes, including 4″, 7″, and 10″ displays, providing flexibility for different applications and space constraints.
- Mounting Options: These terminals support both panel and DIN rail mounting, making them adaptable to various installation environments.
- EtherNet/IP and Serial Connectivity: The PanelView 800 supports multiple communication protocols, including EtherNet/IP, Modbus RTU, and Modbus TCP, ensuring seamless integration with existing control systems.
- USB Ports: The inclusion of USB ports facilitates easy data transfer and connectivity with peripheral devices.
- Connected Components Workbench (CCW): The PanelView 800 is programmed using the CCW software, which offers a comprehensive development environment. This software simplifies configuration and programming, reducing development time.
- Real-Time Data Access: Operators can access real-time data and system status directly from the PanelView 800, enabling faster decision-making and immediate response to issues.
- Intuitive Software Tools: The Connected Components Workbench software provides a user-friendly interface for programming and configuration, reducing the learning curve for new users and speeding up the development process.
Available PanelView 800 Terminals
| Model | Catalog No. | Display Size | Display Type | Input Type |
| PanelView 800 | 2711R-T4T | 4 inch | Color transmissive TFT | Analog Touch Screen & function keys |
| PanelView 800 | 2711R-T7T | 7 inch | Color transmissive TFT | Analog Touch screen |
| PanelView 800 | 2711R-T10T | 10 inch | Color transmissive TFT | Analog Touch screen |
PanelView 800 Applications
- Food processing
- Adhesive labelers
- Air handling units
- Material Handling
- Stretch wrap machines
PanelView Plus 7 (HMI)
Rockwell Automation’s PanelView Plus 7 graphic terminal is covered under Allen-Bradley Bulletin 2711P. The setup of your Integrated Architecture control system is strengthened and made simpler by this development environment. Additionally, the Plus 7 terminals include Ethernet connectivity, allowing users to use a Virtual Network Computing (VNC) server to monitor programmes remotely. Performance and Standard versions are offered.
PanelView Plus 7- Standard Terminals
The intuitive touchscreen interface of the PanelView Plus 7 Standard terminals is its main feature, enabling operators to easily monitor and control processes. The terminals can accommodate varying application demands and manufacturing floor space restrictions with a range of display sizes, from small 4-inch units to larger 15-inch screens.
The PanelView Plus 7 Standard terminals provide versatility in terms of connectivity by supporting numerous communication protocols, such as Ethernet/IP and serial communication choices. This makes it possible to integrate the automation system with a variety of PLCs and other control devices in a smooth manner, enabling thorough control and monitoring capabilities.
Available PanelView Plus 7 – Standard Terminals
| Inches | Module | |
| 4-inch | 2711P-T4W21D8S | 2711P-T4W22D8S |
| 6-inch | 2711P-T6C21D8S | 2711P-T6C22D8S |
| 7-inch | 2711P-T7C21D8S | 2711P-T7C22D8S |
| 9-inch (Wide) | 2711P-T9W21D8S | 2711P-T9W22D8S |
| 10-inch | 2711P-T10C21D8S | 2711P-T10C22D8S |
| 12-inch (Wide) | 2711P-T12W21D8S | 2711P-T12W22D8S |
| 15-inch | 2711P-T15C21D8S | 2711P-T15C22D8S |
PanelView Plus 7-Performance Terminals
The PanelView Plus 7 Performance Terminals from Allen-Bradley offer a significant leap in the human-machine interface (HMI) experience, combining advanced functionality with user-friendly operation. These terminals are designed for applications that demand high performance and scalability, making them ideal for a wide range of industrial environments. With screen sizes ranging from 7 to 19 inches, the PanelView Plus 7 Performance series provides clear, high-resolution displays that enhance visibility and reduce operator fatigue. The intuitive interface supports multi-touch gestures, similar to modern smartphones and tablets, enabling quicker and more efficient interaction.
Security and durability are also at the forefront of the PanelView Plus 7 Performance design. These terminals include robust security features such as user authentication and data encryption, safeguarding critical information and controlling access. The rugged construction is designed to withstand harsh industrial environments, with IP66-rated enclosures that protect against dust and water ingress.
Available PanelView Plus 7-Performance Terminals
| Inches | Module | |
| 7-inch | 2711P-T7C22D9P | 2711P-B7C22D9P |
| 9-inch | 2711P-T9W22D9P | |
| 10-inch | 2711P-T10C22D9P | 2711P-B10C22D9P |
| 12-inch (Wide) | 2711P-T12W22D9P | |
| 15-inch | 2711P-T15C22D9P | 2711P-B15C22D9P |
| 19-inch (Wide) | 2711P-T19C22D9P | |
PanelView Plus 7 Applications
- Manufacturing Automation
- Process Control
- Machine Control
- Packaging Machinery
- Material Handling Systems
- Water and Wastewater Treatment
- Energy Management Systems
Comparison Between PanelView 800 and PanelView Plus 7
When choosing the right Human-Machine Interface (HMI) for industrial automation, understanding the differences between models is crucial. The Allen Bradley PanelView 800 and PanelView Plus 7 are two popular choices, each with its strengths.
Compatible Controllers
The Allen-Bradley SLC 500, CompactLogix 5370 (apart from L37 and L38), CompactLogix 5380 (5069-L306xxx), MicroLogix, and Micro800 family of logic controllers are among the tiny and microcontrollers from Rockwell Automation that are compatible with PanelView 800 terminals.
CompactLogix 5370 and ControlLogix 5570 Controllers, CompactLogix 5380 and ControlLogix 5580 Controllers, CompactLogix 5480 Controllers, Micro800 Controllers, and Third-Party Controllers are connected to both Standard and Performance PanelView Plus 7 terminals.
PanelView Plus 7 Standard versions can only connect to one controller, whereas PanelView 800 terminals can connect to a maximum of four controllers within a system. However, depending on the memory and CPU capacity of each controller, 7 Performance terminals can connect to more than one controller.
Remote Monitoring
PanelView 800 and PanelView Plus 7 provide remote application monitoring and troubleshooting using a Virtual Network Computing (VNC) Server. Furthermore, remote monitoring is possible with the Standard and Performance PanelView Plus 7 terminals thanks to a Web HMI Server, an FTP server, a VNC client, and a Remote Desktop client.
Memory and System Storage
PanelView 800 contains 256 MB of RAM and 256 MB of system storage, which is a large amount of memory. PanelView Plus 7 offers far more memory though; the 512 MB RAM, 512 MB non-volatile storage, and over 80 MB of free memory for user storage are all included in the Standard and Series-A Performance terminals. In contrast, the Performance terminals in Series-B Plus 7 offer 4 GB of RAM, 20 GB of non-volatile storage, and around 2 GB of user storage.
Communications
PanelView 800 terminals include built-in Ethernet and serial connections, which handle both serial and EtherNet/IP communications. RS-232 (DF1), RS-485, and RS-232 (DH-485) are among the serial protocols that are supported. Modbus TCP, Modbus RTU (Master and Slave/Unsolicited), and Modbus ASCII are additional third-party network communication protocols that PanelView 800 supports.
PanelView Plus 7 terminals can only communicate over EtherNet/IP. Support for Device Level Ring (DLR) is standard on Plus 7 Performance terminals, but optional on Standard terminals. But in order to enable third-party Ethernet protocols, Kepware Server is included in both the Plus 7 Performance and Standard terminals.
Screen and Alarm Count
With PanelView 800, you can have up to 1000 alarm trigger conditions and 50 graphical screens. By contrast, the PanelView Plus 7 Standard terminal can only support 500 system alarms and a maximum of 100 graphics screens in a single control system. However, there is no restriction on graphical screens or system alarms with the Plus 7 Performance terminal. Its chosen Processor and memory capacity are the sole constraints.
The Rockwell Automation PanelView 800 and PanelView Plus 7 each offer distinct advantages tailored to different operational needs and environments. The PanelView 800 stands out for its cost-effectiveness, ease of use, and sufficient functionality for small to mid-sized applications. It is particularly suitable for those seeking a straightforward, reliable HMI solution with basic features and a quick setup.
The PanelView Plus 7 provides a more advanced solution, with its high-resolution displays, enhanced connectivity options, and expanded memory capabilities. It is ideal for complex and large-scale operations that require robust data handling, extensive user interactions, and high customization levels. The advanced features and capabilities of the PanelView Plus 7 make it a superior choice for environments where performance, scalability, and detailed visualization are critical.
If you are looking for any Industrial automation software solutions reach us at sales@jrmsolutions.net for Support | Solution | Inquiry | Upgradation | Modification
The Benefits of SCADA Systems in Wind and Solar Power Plants
SCADA, which stands for supervisory control and data acquisition, is a software solution that facilitates the real-time oversight and management of industrial operations. These systems are essential for the monitoring and administration of wind and solar power facilities within the realm of power management. They collect and evaluate data from a range of sensors and devices, equipping operators with current information regarding the operational status of the power plant.
Armed with this information, operators are equipped to make well-informed decisions and undertake proactive measures to enhance the performance of the plant, which encompasses reducing downtime and increasing energy output. The implementation of a dependable and established SCADA control system or SCADA monitoring system is essential for the success of any power system.
How Does a SCADA Control System Work?
A SCADA system functions as a centralized control center for overseeing and regulating industrial processes at multiple sites. A standard SCADA control system consists of three main components:
- Human-Machine Interface (HMI)
- Remote Terminal Unit (RTU)
- Programmable Logic Controller (PLC)
The Human-Machine Interface (HMI) offers operators an intuitive graphical interface for the monitoring and management of the system. Through the HMI, operators can access real-time information, such as equipment status, power output, and various essential metrics.
Operators have the capability to manage the system by modifying various parameters and settings, including the angle of the wind turbine blades and the positioning of the solar panels. Additionally, the Human-Machine Interface (HMI) allows them to establish alarms and notifications that signal when problems occur, enabling timely intervention to resolve issues and avert potential downtime or other complications.
The RTU device gathers sensor information and relays it to the SCADA system. The PLC functions as a computer that manages the power plant operations according to the data obtained from the RTU.
SCADA for Power Management Systems
Power management systems frequently utilize SCADA for real-time monitoring and control functions. These systems provide operators with comprehensive data concerning the operational status of the power plant, including power output, weather conditions, and equipment status. This information is crucial for promptly detecting and resolving issues related to the plant, ultimately improving the overall efficiency of the power plant.
Key Features of SCADA for Power Plants
- Real-Time Monitoring: SCADA systems facilitate the real-time observation of power plant activities, allowing operators to monitor performance and detect potential problems as they occur.
- Remote Control: SCADA systems facilitate the remote management of power plant machinery, empowering operators to modify settings to enhance equipment efficiency without the necessity of being on-site.
- Data Analysis and Reporting: SCADA systems offer comprehensive data analysis and reporting capabilities, allowing operators to examine trends, detect inefficiencies, and enhance plant performance over time.
- Alarms and Alerts: SCADA systems can be set up to produce alarms and alert notifications whenever problems occur, allowing operators to react promptly and reduce downtime.
- Historical Data Storage: SCADA systems maintain a record of historical data related to power plant operations, serving as a crucial resource for evaluating past performance and pinpointing opportunities for enhancement.
- Scalability: SCADA systems possess a high degree of scalability, rendering them appropriate for implementation across power plants of various sizes and configurations.
- Customization: SCADA systems can be tailored to address the unique requirements of individual power plants, allowing for seamless integration with various other systems and software.
Control and Monitoring for Power Plants
SCADA systems consist of two primary elements: control systems and monitoring systems.
SCADA control systems enable operators to modify and oversee the functioning of wind and solar power facilities in real-time. By tracking the performance of specific components, operators can pinpoint opportunities for optimization and implement corrective measures as needed. This may involve altering the pitch angle of wind turbine blades or adjusting the output levels of solar panels.
Solar Power Plant:
| Control Systems | Monitoring Systems |
| Maintenance Management | Monitoring of Temperatures |
| Equipment Condition Monitoring | Monitoring of power output |
| Plant Control and Monitoring | Weather Monitoring |
| Cybersecurity Control | Monitoring of Cybersecurity |
| Load balancing Control | Performance ratio Monitoring |
| Battery storage Control | Shade analysis Monitoring |
| Inverter Control | Alarm Monitoring |
Wind Power Plant:
| Control Systems | Monitoring Systems |
| Cybersecurity Control | Monitoring Cybersecurity |
| Generator Control | Monitoring of oil levels |
| Real-time Condition Monitoring | Temperature Monitoring |
| Wind Turbine Control and Monitoring | Monitoring of Temperature |
| Load balancing Control | Management of SCADA Network |
| Power converter Control | Gearbox Monitoring |
| Blade pitch Control | Monitoring of power output |
| Yaw Control | Wind speed Monitoring |
SCADA System for Solar Plants
A SCADA system architecture for solar power plants generally comprises remote terminal units (RTUs), supervisory computers, and human-machine interface (HMI) software. The RTUs play a crucial role in monitoring and managing the solar panels and inverters, whereas the supervisory computers are tasked with collecting and analyzing data from the RTUs. The HMI software facilitates operator interaction with the system, enabling them to oversee the solar plant’s performance.
Key Features of SCADA for Solar Plants
- Remote Terminal Units (RTUs) are responsible for the monitoring and control of solar panels and inverters.
- Supervisory Computers collect and assess information from the Remote Terminal Units (RTUs).
- Human-Machine Interface (HMI) software enables operators to engage with the system and oversee its performance.
- Real-time Monitoring and Control enhances the efficiency of clean energy production.
- Enhanced performance efficiency achieved via data analysis and predictive maintenance strategies.
- Improved identification and analysis of faults.
Conclusion
SCADA systems play a pivotal role in optimizing the operations of wind and solar power plants. By providing real-time monitoring, data analysis, and remote control capabilities, these systems ensure that renewable energy assets operate at peak efficiency. The ability to detect and address issues quickly minimizes downtime, reduces maintenance costs, and enhances overall productivity. Additionally, SCADA systems contribute to improved grid stability and energy forecasting, which are essential for integrating renewable energy into the power grid.
