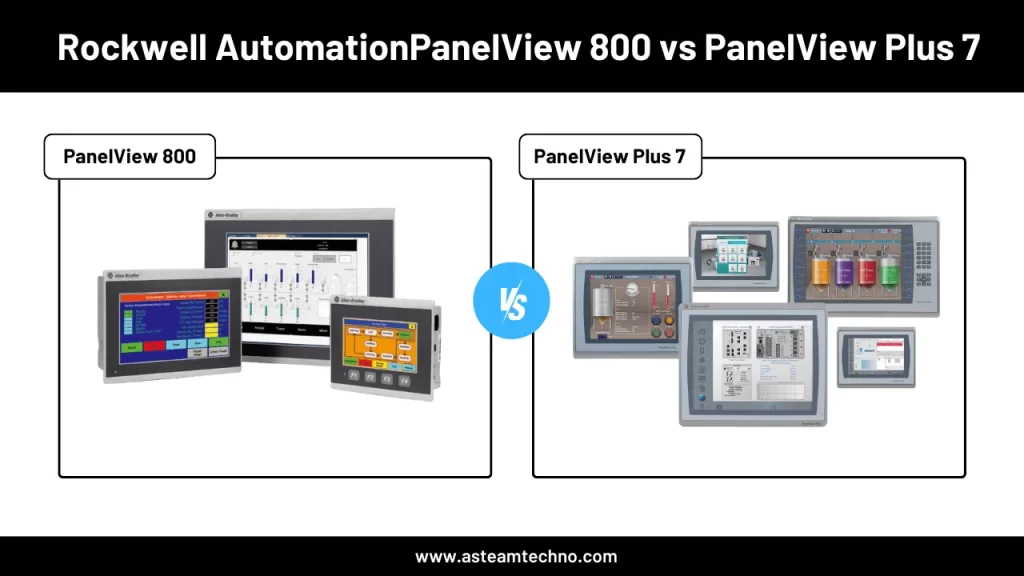

Rockwell Automation PanelView 800 vs PanelView Plus 7
Allen Bradley Human-Machine Interface (HMI) solutions are pivotal in ensuring efficient operation, monitoring, and control of machinery and processes. Rockwell Automation’s PanelView 800 and PanelView Plus 7 stand out as robust HMI solutions, tailored to meet diverse industrial needs.
Rockwell Automation PanelViews are operator interfaces that are shown graphically, much like Human-Machine Interfaces (HMIs). They are a mix of software and hardware that let users communicate with a controller. Numerous industrial applications that call for the monitoring, control, and graphical presentation of operational data frequently use these PanelView terminals.
PanelView 800 (HMI)
One of the key features of the PanelView 800 is its compact design, available in 4-inch, 7-inch, and 10-inch display sizes.
Despite its small footprint, the HMI delivers exceptional performance, with a high-resolution colour display that ensures clear visibility of process data and intuitive user interaction.
The touchscreen interface supports multiple gestures, enhancing the ease of use and enabling operators to quickly navigate through different screens and control processes efficiently.
Connectivity is a significant strength of the PanelView 800. It comes equipped with built-in Ethernet and serial communications, supporting a wide range of protocols including EtherNet/IP, Modbus TCP, and DF1. This ensures seamless integration with various controllers, such as Allen-Bradley Micro800, MicroLogix, and CompactLogix, allowing for flexible and scalable system configurations. Additionally, the USB port provides a convenient option for data transfer and firmware updates, further simplifying the maintenance process.
Key Features and Benefits PanelView 800 HMI
- Size Range: The PanelView 800 is available in various sizes, including 4″, 7″, and 10″ displays, providing flexibility for different applications and space constraints.
- Mounting Options: These terminals support both panel and DIN rail mounting, making them adaptable to various installation environments.
- EtherNet/IP and Serial Connectivity: The PanelView 800 supports multiple communication protocols, including EtherNet/IP, Modbus RTU, and Modbus TCP, ensuring seamless integration with existing control systems.
- USB Ports: The inclusion of USB ports facilitates easy data transfer and connectivity with peripheral devices.
- Connected Components Workbench (CCW): The PanelView 800 is programmed using the CCW software, which offers a comprehensive development environment. This software simplifies configuration and programming, reducing development time.
- Real-Time Data Access: Operators can access real-time data and system status directly from the PanelView 800, enabling faster decision-making and immediate response to issues.
- Intuitive Software Tools: The Connected Components Workbench software provides a user-friendly interface for programming and configuration, reducing the learning curve for new users and speeding up the development process.
Available PanelView 800 Terminals
| Model | Catalog No. | Display Size | Display Type | Input Type |
| PanelView 800 | 2711R-T4T | 4 inch | Color transmissive TFT | Analog Touch Screen & function keys |
| PanelView 800 | 2711R-T7T | 7 inch | Color transmissive TFT | Analog Touch screen |
| PanelView 800 | 2711R-T10T | 10 inch | Color transmissive TFT | Analog Touch screen |
PanelView 800 Applications
- Food processing
- Adhesive labelers
- Air handling units
- Material Handling
- Stretch wrap machines
PanelView Plus 7 (HMI)
Rockwell Automation’s PanelView Plus 7 graphic terminal is covered under Allen-Bradley Bulletin 2711P. The setup of your Integrated Architecture control system is strengthened and made simpler by this development environment. Additionally, the Plus 7 terminals include Ethernet connectivity, allowing users to use a Virtual Network Computing (VNC) server to monitor programmes remotely. Performance and Standard versions are offered.
PanelView Plus 7- Standard Terminals
The intuitive touchscreen interface of the PanelView Plus 7 Standard terminals is its main feature, enabling operators to easily monitor and control processes. The terminals can accommodate varying application demands and manufacturing floor space restrictions with a range of display sizes, from small 4-inch units to larger 15-inch screens.
The PanelView Plus 7 Standard terminals provide versatility in terms of connectivity by supporting numerous communication protocols, such as Ethernet/IP and serial communication choices. This makes it possible to integrate the automation system with a variety of PLCs and other control devices in a smooth manner, enabling thorough control and monitoring capabilities.
Available PanelView Plus 7 – Standard Terminals
| Inches | Module | |
| 4-inch | 2711P-T4W21D8S | 2711P-T4W22D8S |
| 6-inch | 2711P-T6C21D8S | 2711P-T6C22D8S |
| 7-inch | 2711P-T7C21D8S | 2711P-T7C22D8S |
| 9-inch (Wide) | 2711P-T9W21D8S | 2711P-T9W22D8S |
| 10-inch | 2711P-T10C21D8S | 2711P-T10C22D8S |
| 12-inch (Wide) | 2711P-T12W21D8S | 2711P-T12W22D8S |
| 15-inch | 2711P-T15C21D8S | 2711P-T15C22D8S |
PanelView Plus 7-Performance Terminals
The PanelView Plus 7 Performance Terminals from Allen-Bradley offer a significant leap in the human-machine interface (HMI) experience, combining advanced functionality with user-friendly operation. These terminals are designed for applications that demand high performance and scalability, making them ideal for a wide range of industrial environments. With screen sizes ranging from 7 to 19 inches, the PanelView Plus 7 Performance series provides clear, high-resolution displays that enhance visibility and reduce operator fatigue. The intuitive interface supports multi-touch gestures, similar to modern smartphones and tablets, enabling quicker and more efficient interaction.
Security and durability are also at the forefront of the PanelView Plus 7 Performance design. These terminals include robust security features such as user authentication and data encryption, safeguarding critical information and controlling access. The rugged construction is designed to withstand harsh industrial environments, with IP66-rated enclosures that protect against dust and water ingress.
Available PanelView Plus 7-Performance Terminals
| Inches | Module | |
| 7-inch | 2711P-T7C22D9P | 2711P-B7C22D9P |
| 9-inch | 2711P-T9W22D9P | |
| 10-inch | 2711P-T10C22D9P | 2711P-B10C22D9P |
| 12-inch (Wide) | 2711P-T12W22D9P | |
| 15-inch | 2711P-T15C22D9P | 2711P-B15C22D9P |
| 19-inch (Wide) | 2711P-T19C22D9P | |
PanelView Plus 7 Applications
- Manufacturing Automation
- Process Control
- Machine Control
- Packaging Machinery
- Material Handling Systems
- Water and Wastewater Treatment
- Energy Management Systems
Comparison Between PanelView 800 and PanelView Plus 7
When choosing the right Human-Machine Interface (HMI) for industrial automation, understanding the differences between models is crucial. The Allen Bradley PanelView 800 and PanelView Plus 7 are two popular choices, each with its strengths.
Compatible Controllers
The Allen-Bradley SLC 500, CompactLogix 5370 (apart from L37 and L38), CompactLogix 5380 (5069-L306xxx), MicroLogix, and Micro800 family of logic controllers are among the tiny and microcontrollers from Rockwell Automation that are compatible with PanelView 800 terminals.
CompactLogix 5370 and ControlLogix 5570 Controllers, CompactLogix 5380 and ControlLogix 5580 Controllers, CompactLogix 5480 Controllers, Micro800 Controllers, and Third-Party Controllers are connected to both Standard and Performance PanelView Plus 7 terminals.
PanelView Plus 7 Standard versions can only connect to one controller, whereas PanelView 800 terminals can connect to a maximum of four controllers within a system. However, depending on the memory and CPU capacity of each controller, 7 Performance terminals can connect to more than one controller.
Remote Monitoring
PanelView 800 and PanelView Plus 7 provide remote application monitoring and troubleshooting using a Virtual Network Computing (VNC) Server. Furthermore, remote monitoring is possible with the Standard and Performance PanelView Plus 7 terminals thanks to a Web HMI Server, an FTP server, a VNC client, and a Remote Desktop client.
Memory and System Storage
PanelView 800 contains 256 MB of RAM and 256 MB of system storage, which is a large amount of memory. PanelView Plus 7 offers far more memory though; the 512 MB RAM, 512 MB non-volatile storage, and over 80 MB of free memory for user storage are all included in the Standard and Series-A Performance terminals. In contrast, the Performance terminals in Series-B Plus 7 offer 4 GB of RAM, 20 GB of non-volatile storage, and around 2 GB of user storage.
Communications
PanelView 800 terminals include built-in Ethernet and serial connections, which handle both serial and EtherNet/IP communications. RS-232 (DF1), RS-485, and RS-232 (DH-485) are among the serial protocols that are supported. Modbus TCP, Modbus RTU (Master and Slave/Unsolicited), and Modbus ASCII are additional third-party network communication protocols that PanelView 800 supports.
PanelView Plus 7 terminals can only communicate over EtherNet/IP. Support for Device Level Ring (DLR) is standard on Plus 7 Performance terminals, but optional on Standard terminals. But in order to enable third-party Ethernet protocols, Kepware Server is included in both the Plus 7 Performance and Standard terminals.
Screen and Alarm Count
With PanelView 800, you can have up to 1000 alarm trigger conditions and 50 graphical screens. By contrast, the PanelView Plus 7 Standard terminal can only support 500 system alarms and a maximum of 100 graphics screens in a single control system. However, there is no restriction on graphical screens or system alarms with the Plus 7 Performance terminal. Its chosen Processor and memory capacity are the sole constraints.
The Rockwell Automation PanelView 800 and PanelView Plus 7 each offer distinct advantages tailored to different operational needs and environments. The PanelView 800 stands out for its cost-effectiveness, ease of use, and sufficient functionality for small to mid-sized applications. It is particularly suitable for those seeking a straightforward, reliable HMI solution with basic features and a quick setup.
The PanelView Plus 7 provides a more advanced solution, with its high-resolution displays, enhanced connectivity options, and expanded memory capabilities. It is ideal for complex and large-scale operations that require robust data handling, extensive user interactions, and high customization levels. The advanced features and capabilities of the PanelView Plus 7 make it a superior choice for environments where performance, scalability, and detailed visualization are critical.
